kornylak transwheel

Unique & Durable Design
Kornylak Transwheel's unique design has eight free-turning rollers positioned at 90 degrees to the axle around the Kornylak Transwheel® periphery. Combine this movement with the rotation of the wheel body and you have the ability to move loads in any direction. This conveyor wheel is not only multidirectional, but with a keyway or sprocket option, it has the ability to be used as a powered conveyor wheel as well.

Powered Conveyor Wheels
Transwheel® is used as a non-powered and powered conveyor wheel.

Corrosion-resistant Construction
Transwheel's body, rollers, center axle and sprockets are high strength plastic. Outer roller axles are stainless steel with a low friction coating. This corrosion resistant construction permits steam cleaning, water immersion and outdoor applications. Self-lubricating properties eliminate the need for oil or grease. All 4202B models come with optional Nylon bushings, or standard Polyethylene bushings.

All 4202B models come with optional Nylon bushings, or standard Polyethylene bushings.

Note: The double row 4000 series, 4202B model, Transwheels now come with an optional Nylon bushings, or the standard Polyethylene bushings.

Two sizes Available
Series 2000 Transwheels have a 2" OD and a 25 pounds / wheel load rating. Series 4000 Transwheels have a 4" OD and a 100 pounds / wheel load rating. Transwheels come in two diameters 2 inches and 4 inches.

Transwheels come in two diameters 2 inches and 4 inches.

Various styles are available for standard and special applications. These include: plain bore, bushed, keyway bore, integral shaft, integral sprocket, caster, gravity rail, skatewheel section, powered rail (with either lateral or longitudinal movement) and power table. In addition, Kornylak will design and furnish special assemblies to suit your specific needs.

Many Applications
Transwheel® does the work of a caster without the locking and swinging problems usually experienced with swivel casters. Transwheels also make an efficient economical "ball table". They have larger contact points and the enclosed design keeps out foreign matter, prevents "freezing". See Transection.pdf

Other applications include: conveyor discharge or loading stations, packaging tables, appliance casters, transfers between angled conveyors, powered turns and powered multi-directional tables. Transwheel's exceptionally light weight is an important advantage for portable or aircraft equipment. See Idler Transrail.pdf

Exact Replacement for Skatewheel
Model 2051B Transwheel® has the same OD, bore and width dimensions as a standard skatewheel, so you can easily convert any section conveyor to multi-directional "ball table" or work station by substituting Transwheels, using the same axle rods and spacers.

Inserts Available
For information for all models : >> Contact to >> PS Victory System Enterprise Co.,Ltd.

Tel. 02-2358589 , 02-634-9944 Fax. 02-2358590 e-mail:info@victorysystem.com www.Victorysystem.com

New "Cat-Trak" Transwheel® Are The Robot Wheels With GRIP!

The first Transwheel roller is the standard nylon. The second roller is the synthetic rubber coated polypropylene. The third is the urethane roller with the stainless steel axle.

The New "Cat-Trak" Transwheel® for robot wheels comes with either synthetic rubber coated polypropylene rollers or polyurethane rollers and stainless steel axle for awesome gripping power. Standard Transwheels have nylon rollers for heavy loads and to reduce operational friction; the new rollers are designed with traction in mind. If your robot needs to walk up a metal ramp, or across a tile or hard wood floor, the Cat-Trak Transwheel® is what you need! This picture is of the 4202KXU model Transwheel with the urethane rollers.

This picture is of the 4202KXU model Transwheel with the urethane rollers.

The Cat-Trak Transwheels use the same bodies as the standard Transwheels; however, they use different rollers. The 2000 series Cat-Trak Transwheels are available with the rubber coated polypropylene rollers, while the 4000 series is available with either types of Cat-Trak rollers.

The rubber coated polypropylene rollers are similar to the Transwheels standard nylon rollers; however, they have a thin coating of synthetic rubber around the outside of the roller. This allows the Transwheel® to carry heavy loads while at the same time giving it traction on slick surfaces.

The polyurethane rollers are molded with a stainless steel axle. The urethane rollers will deform some depending on the weight load; however, they have greater gripping power than the rubber coated rollers.

Transwheel® Series 2000 - 2" Diameter

Max Load = 25 lbs. / I.D. range 1/4" - 1/2"

Transwheel is now available with the standard Nylon roller or the New CAT-TRAK rollers synthetic rubber coated polypropylene roller.

1. Standard Nylon roller.
2. Synthetic rubber coated polypropylene 'CAT-TRAK' roller.

Click on picture to enlarge. Note, we can supply custom wheel configurations not listed; contact Sales.


2051-1/4 2051-1/4X	Standard 2" O.D. - 1/4" Plain Bore Metric 49.2mm O.D. - 6.35mm Plain Bore Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051-1/4B 2051-1/4BX	Standard 2" O.D. - 1/4" Plain Bore, Black body Metric 49.2mm O.D. - 6.35mm Plain Bore Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051-3/8 2051-3/8X	Standard 2" O.D. - 3/8" Plain Bore Metric 49.2mm O.D. - 9.5mm Plain Bore Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051-3/8G 2051-3/8GX	Standard 2" O.D. - 3/8" Plain Bore - High Impact Plastic Body Metric 49.2mm O.D. - 9.5mm Plain Bore Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051-1/2 2051-1/2X	Standard 2" O.D. - 1/2" Plain Bore Metric 49.2mm O.D. - 12.7mm Plain Bore Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051-10mm 2051-10mmX	Standard 2" O.D. - 10mm Plain Bore Metric 49.2mm O.D. - 10mm Plain Bore Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz

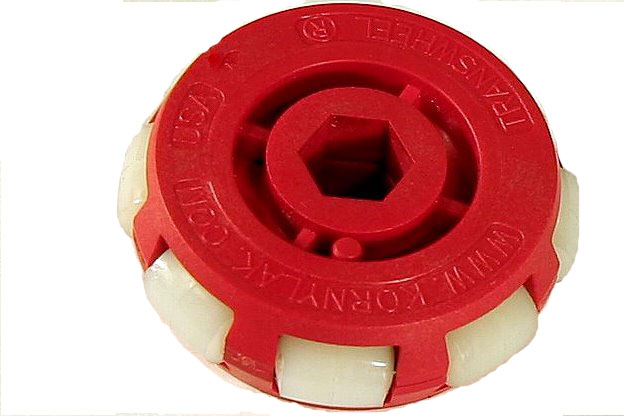

2051-11mmHB 2051-11mmXHB	Standard 2" O.D. - 11mm Hex Bore Metric 49.2mm O.D. - 11mm Hex Bore Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051K 2051KX	Standard 2" O.D. - 1/2" Bore W/ Keyway Metric 49.2mm O.D. - 12.7mm Bore w/ Keyway Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051KG 2051KGX	Standard 2" O.D. - 1/2" Bore W/ Keyway - High Impact Plastic Body Metric 49.2mm O.D. - 12.7mm Bore w/ Keyway Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051-58 2051-58X	Standard 2" O.D. - 5/8" Min Bore Metric 49.2mm O.D. - 15.875mm Min Bore Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051A 2051AX	Standard 2" O.D. - 1/4" Axle Metric 49.2mm O.D. - 6.35mm Axle Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051B 2051BX	Standard 2" O.D. - 1/4" ID Bushing Metric 49.2mm O.D. - 6.35mm Bushing Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051B8 2051B8X	Standard 2" O.D. - 8mm ID Bushing Metric 49.2mm O.D. - 8mm Bushing Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2051S 2051SX	Standard 2" O.D. - Double Sprocket Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 7.5 lbs. 3.4kg 200# Test Corrugated Bottom = 5 lbs. 2.25kg Weight = 1.00 oz
2052-3/8 2052-3/8X	Standard 2" O.D. - 3/8" Bore Double Row Metric 49.2mm O.D. - 9.5mm Plain Bore Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 15 lbs. 6.8kg 200# Test Corrugated Bottom = 10 lbs. 4.5kg Weight = 1.75 oz
2052B 2052BX	Standard 2" O.D. - 1/4" I.D. Bushing Double Row Metric 49.2mm O.D. - 6.35mm Bushing Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 15 lbs. 6.8kg 200# Test Corrugated Bottom = 10 lbs. 4.5kg Weight = 1.75 oz
2052K 2052KX	Standard 2" O.D. - 1/2" Bore Double Row w/ Keyway Metric 49.2mm O.D. - 12.7mm Bore w/ Keyway Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 15 lbs. 6.8kg 200# Test Corrugated Bottom = 10 lbs. 4.5kg Weight = 1.75 oz
FXB102	2" Non Swivel Caster Recommended max load \| Steel Bottom = 25 lbs. 11.3kg Plywood Surface = 15 lbs. 6.8kg 200# Test Corrugated Bottom = 10 lbs. 4.5kg Weight = 11 oz
FOA110	Standard 2" Sprocket Short Designed For Use With Single Wheel Uses ASA #25 Chain Weight = .16 oz
FOA117	Standard 2" Sprocket Long Designed For Use With Double Wheel Uses ASA #25 Chain Weight = 0.24 oz

Transwheels are used for powered bidirectional wheels, swivel wheels, swivel tables, roller tables, and omni directional wheels. Transwheels can be used as non-powered and powered conveyor wheels and robot wheels.

KRUMOR PROFESSIONAL BOLTING TOOLS , EFFICIENCY HIGH TORQUE , GOOD QUALITY & HEAVY DUTY TORQUE WRENCH

Hydraulic HI-POWER CENTER Tel. 02-2358589 , 02-634-9944 email : info@victorysystem.com www.VictorySystem.com

PROFESSIONAL BOLTING TOOLSPUMP

Transwheel® Series 4000 - 4" Diameter

Max Load = 100 lbs. - I.D. range 3/4" - 1"

Transwheel is now available with the standard Nylon roller, with New CAT-TRAK synthetic rubber coated polypropylene roller, with solid urethane roller on molded axle or solid carboxylated nitrile non-marking roller on molded axle

1. Standard Nylon roller.
2. Synthetic rubber coated Polypropylene 'CAT-TRAK' roller.
3. Solid Urethane 'CAT-TRAK' roller molded on stainless steel axle. Shore A Hardness 65+/-5
4. Solid Carboxylated Nitrile non marking roller molded on stainless steel axle. Shore A Hardness 65 Plus

Click on picture below to enlarge. Note, we can supply custom wheel configurations not listed; contact Sales.

4201-3/4 4201-3/4X 4201-3/4XU	Standard 4" O.D. - 3/4" Bore Metric 101.6mm O.D. - 19mm Bore Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 7.00 oz Standard Nylon roller. FXA151 / 4201-3/4 Cat-Trak Models Synthetic rubber coated polypropylene roller. FXA351 / 4201-3/4X Solid urethane roller molded on stainless steel axle. FXA451 / 4201-3/4XU
4201-1 4201-1X 4201-1XU 4201-1XN	Standard 4" O.D. - 1" Bore Metric 101.6mm O.D. - 25.4mm Bore Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 7.00 oz List price - $9.34 Each \| FXA165 Cat-Trak Models Synthetic rubber coated polypropylene roller. FXA365 / 4201-1X Solid urethane roller molded on stainless steel axle. FXA465 / 4201-1XU Carboxylated nitrile, high impact non-marking roller molded on stainless steel axle. FXA565 / 4201-1XN
4201-1BXN 4201-1 1/32BXN	Standard 4" O.D. - 1" Bore - High Impact Plastic Body Metric 101.6mm O.D. - 25.4mm Bore Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 7.00 oz Cat-Trak Models Carboxylated Nitrile, high impact non-marking roller molded on stainless steel axle. FXA565B / 4201-1BXN List price - $26.00 Each-Contact Sales to Order \| FXA589B Carboxylated Nitrile, high impact non-marking roller molded on stainless steel axle, 1 1/32" ID FXA589B / 4201-1 1/32BXN
4201-1W 4201-1WX 4201-WXU 4201-1WXN	Standard 4" O.D. - 1" Bore - High Impact Plastic Body Metric 101.6mm O.D. - 25.4mm Bore Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 7.00 oz Synthetic rubber coated polypropylene roller. FXA365W / 4201-1WX Solid urethane roller molded on stainless steel axle. FXA465W / 4201-1WXU Carboxylated nitrile, high impact non-marking roller molded on stainless steel axle. FXA565W / 4201-1WXN
4201-2W-Split Wheel 4201-2WX-Split Wheel 4201-2WXU-Split Wheel 4201-2WXN-Split Wheel 4201-2BXN-Split Wheel	Split Wheel 4" O.D. - 1" Bore - High Impact Plastic Body Metric 101.6mm O.D. - 25.4mm Bore Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 8.60 oz Contact Sales to order List price - $23.78 Each \| FXA196W Standard Nylon roller. FXA196W / 4201-2W-Split Wheel Cat-Trak Models Synthetic rubber coated polypropylene roller. FXA396W / 4201-2WX-Split Wheel Solid urethane roller molded on stainless steel axle. FXA496W / 4201-2WXU-Split Wheel Carboxylated nitrile, high impact non-marking roller molded on stainless steel axle. FXA596W / 4201-2WXN-Split Wheel Carboxylated N. roller, Black H.I. Plastic Body. FXA596B / 4201-2BXN-Split Wheel
4201A 4201AX 4201AXU	Standard 4" O.D. - 1/2" Axle Metric 101.6mm O.D. - 12.7mm Alxe Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 7.00 oz Synthetic rubber coated polypropylene roller. FXA353 / 4201AX Solid urethane roller molded on stainless steel axle. FXA453 / 4201AXU
4201B 4201BX 4201BXU	Standard 4" O.D. - 1/2" I.D. Bushing Metric 101.6mm O.D. - 12.7mm Bushing Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 7.00 oz Synthetic rubber coated polypropylene roller. FXA352 / 4201BX Solid urethane roller molded on stainless steel axle. FXA452 / 4201BXU
4201HB 4201HBX 4201HBXU	Standard 4" O.D. - 7/8" Hex Bore Metric 101.6mm O.D. - 22.2mm Hex Bore Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 7.00 oz Synthetic rubber coated polypropylene roller. FXA373 / 4201HBX Solid urethane roller molded on stainless steel axle. FXA473 / 4201HBXU
4201K 4201KX 4201KXU	Standard 4" O.D. - 1" Bore w/ Keyway Metric 101.6mm O.D. - 25.4mm Bore w/ Keyway Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 7.00 oz Synthetic rubber coated polypropylene roller. FXA354 / 4201KX Solid urethane roller molded on stainless steel axle. FXA454 / 4201KXU
4201KW 4201KWX 4201KWXU	Standard 4" O.D. - 1" Bore w/ Keyway - High Impact Plastic Body Metric 101.6mm O.D. - 25.4mm Bore w/ Keyway Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 7.00 oz Synthetic rubber coated polypropylene roller. FXA354W / 4201KWX Solid urethane roller molded on stainless steel axle. FXA454W / 4201KWXU
4201S 4201SX 4201SXU	Standard 4" O.D. - 3/4"" Bore w/ Keyway & Two Sprockets Metric 101.6mm O.D. - 19mm Bore w/ Keyway & Two Sprockets Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 7.00 oz Synthetic rubber coated polypropylene roller. FXA355 / 4201SX Solid urethane roller molded on stainless steel axle. FXA455 / 4201SXU
4202 4202X 4202XU	Standard 4" O.D. - Double Row w/ 3/4" Bore Metric 101.6mm O.D. - 19mm Bore Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 11.00 oz Synthetic rubber coated polypropylene roller. FXA356 / 4201X Solid urethane roller molded on stainless steel axle. FXA456 / 4202XU
4202W 4202WX 4202WXU	Standard 4" O.D. - Double Row w/ 3/4" Bore - High Impact Plastic Body Metric 101.6mm O.D. - 19mm Bore Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 11.00 oz Synthetic rubber coated polypropylene roller. FXA356W / 4201WX Solid urethane roller molded on stainless steel axle. FXA456W / 4202WXU
4202B 4202BX 4202BXU	Standard 4" O.D. - Double Row w/ 1/2" I.D. Bushing (Polyethylene) Metric 101.6mm O.D. - 12.7mm Bushing Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 11.00 oz Synthetic rubber coated polypropylene roller. FXA359 / 4202BXU Solid urethane roller molded on stainless steel axle. FXA459 / 4202BXU
4202BN 4202BNX 4202BNXU	Standard 4" O.D. - Double Row w/ 1/2" I.D. Bushing (Nylon) Metric 101.6mm O.D. - 12.7mm Bushing Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 11.00 oz Synthetic rubber coated polypropylene roller. FXA359N / 4202BNX Solid urethane roller molded on stainless steel axle. FXA459N / 4202BNXU
4202K 4202KX 4202KXU	Standard 4" O.D. - 1" Bore Double Row w/ Keyway Metric 101.6mm O.D. - 25.4mm Bore Double Row w/ Keyway Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 11.00 oz List price - $35.29 Each \| FXA457 Synthetic rubber coated polypropylene roller. FXA357 / 4202KX Solid urethane roller molded on stainless steel axle. FXA457 / 4202KXU
4202KW 4202KWX 4202KWXU	4" O.D. - 1" Bore Double Row w/ Keyway - High Impact Plastic Body Metric 101.6mm O.D. - 25.4mm Bore Double Row w/ Keyway Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 11.00 oz Synthetic rubber coated polypropylene roller. FXA357W / 4202KWX Solid urethane roller molded on stainless steel axle. FXA457W / 4202KWXU

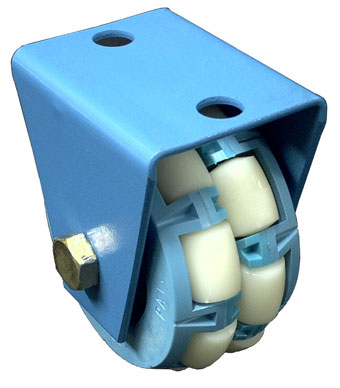

FXB163	4" Non-Swivel Caster Recommended max load \| Steel Bottom = 100 lbs. 45.5kg Plywood Surface = 40 lbs. 18kg 200# Test Corrugated Bottom = 20 lbs. 9kg Weight = 20.00 oz Plated (not shown) Contact Sales for Pricing \| FXB214
FOA159	Standard 4" Sprocket Short - 3/4" Bore Metric 101.6mm O.D. - 19mm Bore Designed For Use With Single Wheel Uses ASA #40 Chain Weight = 1.60 oz
FOA160	Standard 4" Sprocket Long - 3/4" Bore Metric 101.6mm O.D. - 19mm Bore Designed For Use With Double Wheel Uses ASA #40 Chain Weight = 1.60 oz

If you are looking for Robot Wheels, both Powered Bidirectional Wheels and Omnidirectional Wheels than Transwheel is what you need. Transwheels are designed to work as Swivel Wheels for Ball Tables or Roller Tables and can be used in both Non-Powered and Powered applications.
